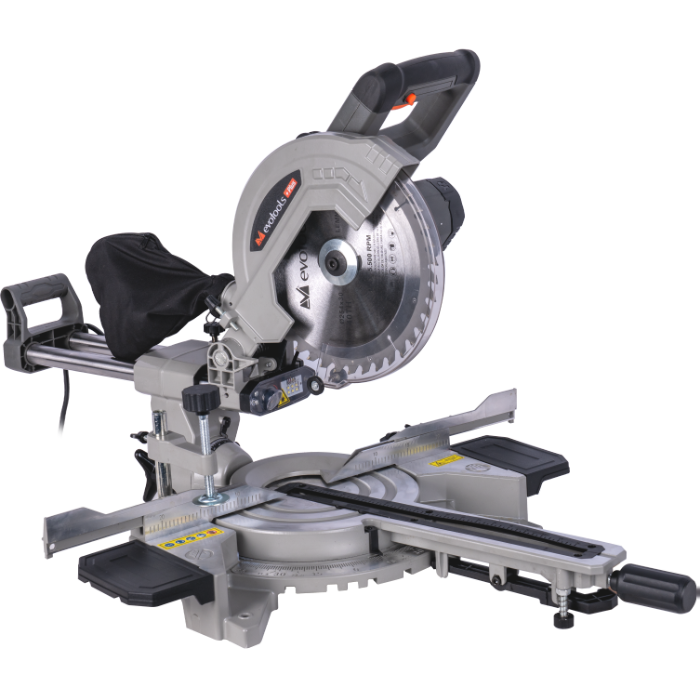

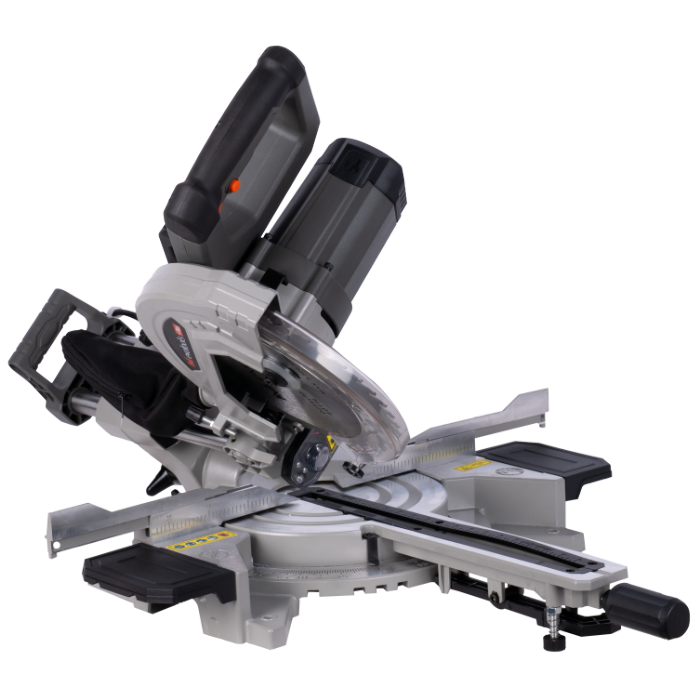

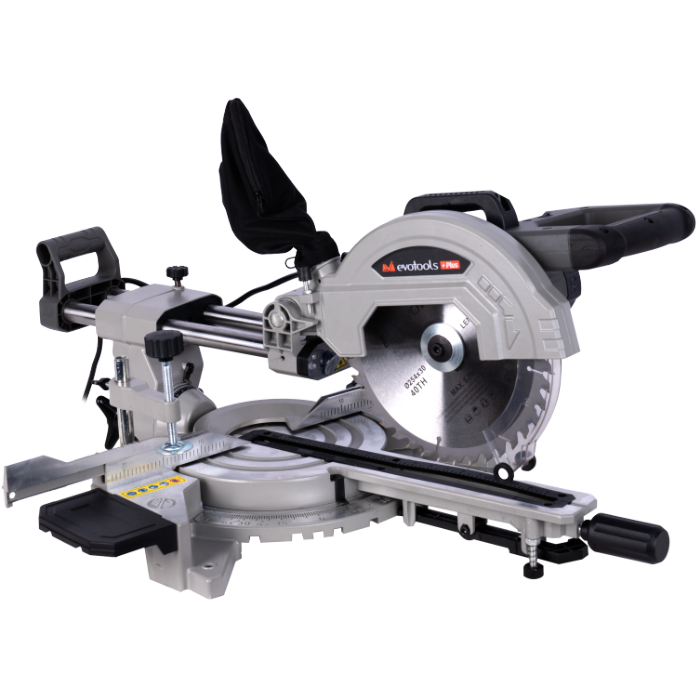

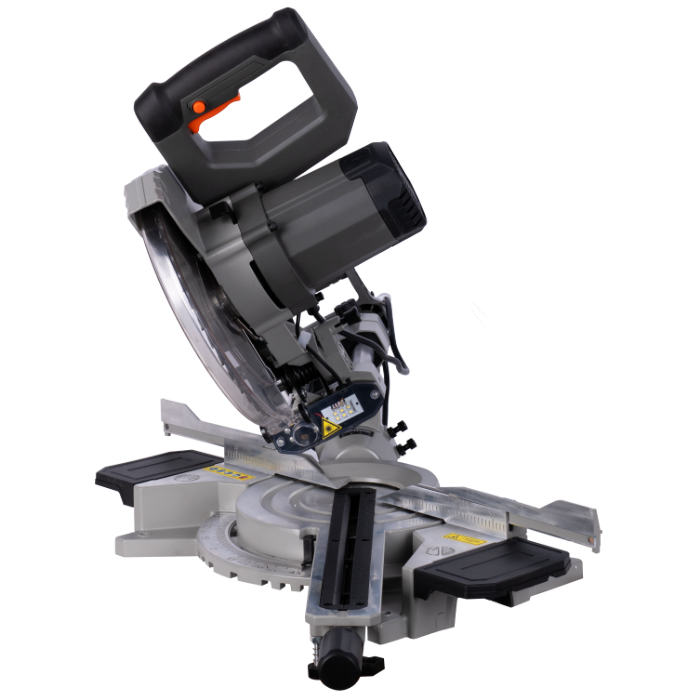

Turn any wood or panel cutting operation into a simple and fast task with the SMS1800 EvoTools +Plus® sliding compound mitre saw. Equipped with a powerful 1800 W motor, this machine is designed to deliver consistent performance even under heavy-duty use. The advanced sliding system extends the cutting width up to 340 mm, while the laser guide gives you the millimetre accuracy required for flawless finishes.

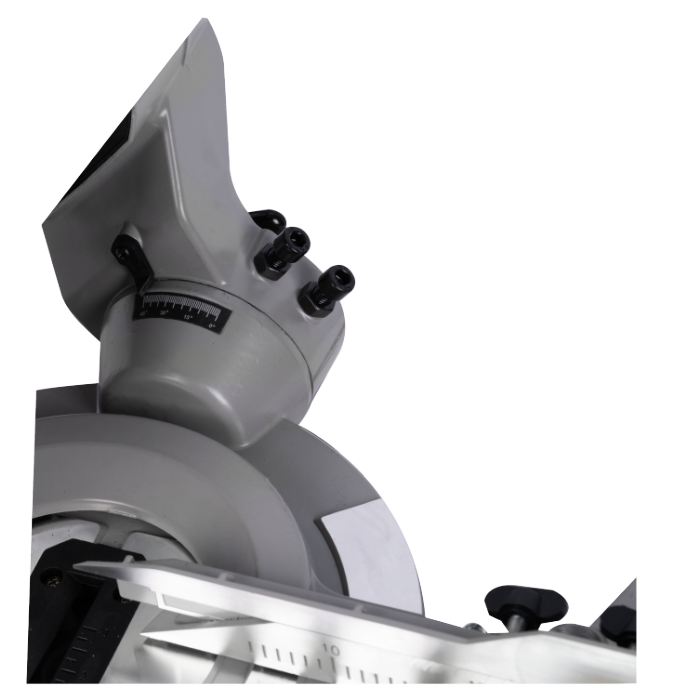

The robust design is supported by an aluminium base, allowing versatile cuts at angles of up to 45° and adjustment of the cutting depth. For a clean and healthy working environment, the tool features an efficient dust extraction system, compatible with industrial vacuum cleaners and supplied with a collection bag. User safety is a priority: the saw is equipped with an anti–restart mechanism, dust-protected switch and self-protecting carbon brushes.
Technical specifications:
Voltage / Frequency: 220–240 V ~ 50-60 Hz
Rated power: 1800 W
No-load speed: 4500 rot/min
Blade diameter: 254 mm
Bore size (inner diameter): 30 mm
Blade thickness / number of teeth: 2.5 mm / 40 T
Cutting width: 85 mm
Maximum cutting capacities:
At 90° / 90°: 340 x 100 mm
At 90° / 45°: 340 x 60 mm
At 45° / 90°: 240 x 110 mm
At 45° / 45°: 240 x 60 mm
Tilting range: 0 - 45°
Special features:
Laser guide,
Sliding system for wide workpieces,
Anti–restart mechanism.
Package contents:
1 x blade with 40 teeth (diameter 254 mm),
1 x dust collection bag,
1 x spare pair of carbon brushes,
1 x fixing vise
Do not allow children or unauthorised persons in the work area. Distraction can cause loss of control of the tool. The product complies with European safety standards! For your safety, read the product user manual!
