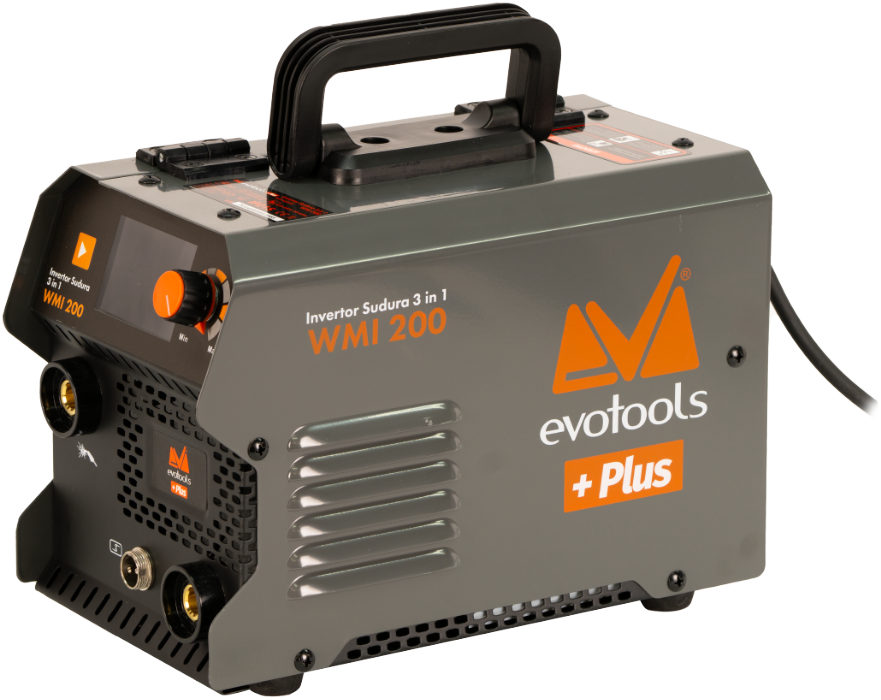

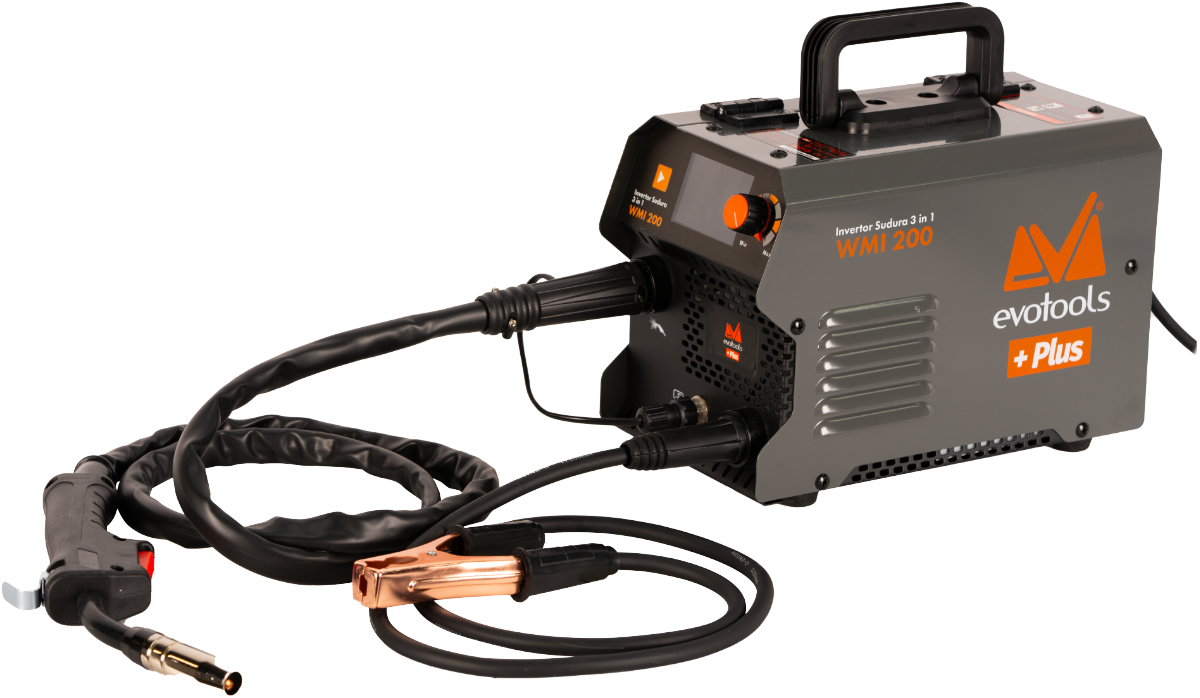

3 în 1 Welding Inverter EvoTools +Plus® WMI-200 - Versatile Performance for MIG, MMA and TIG Welding
Discover the complete solution for your welding needs with the 3 în 1 Inverter EvoTools +Plus® WMI-200. This multifunctional machine combines MIG (gasless), MMA (covered electrode) and TIG technologies, giving you the flexibility to tackle a wide range of projects with a single piece of equipment.
Key Features:
- 3 în 1 versatility: Supports MIG, MMA and TIG welding processes, adapting to different materials and applications.

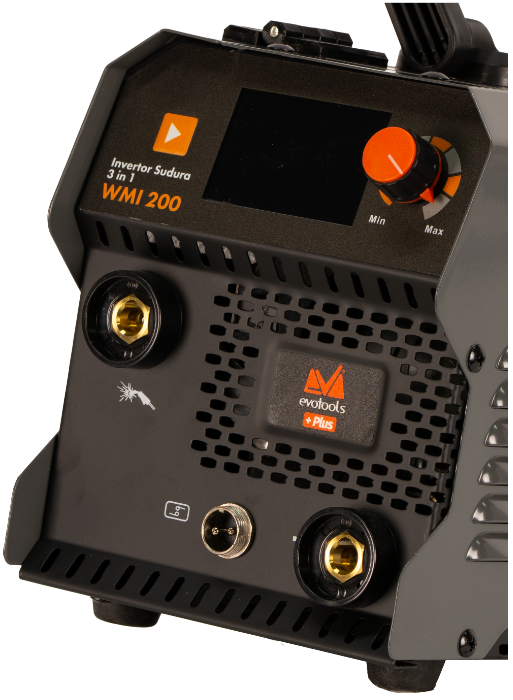

- Advanced Digital Control: The control panel with LED digital display allows precise adjustment of parameters for each welding mode, ensuring optimal results.
- Reliable Performance: Advanced inverter technology guarantees a stable welding arc and superior weld quality.
- Portability and Compact Design: Weighing only 4.5 kg, the unit is easy to transport and store, ideal for use in the workshop or on site.
Smart Integrated Functions:
- Anti-Stick (MMA): Prevents the electrode from sticking during MMA welding.
- Hot Start (MMA): Ensures easy arc ignition in MMA welding.
- Arc Force (MMA): Optimizes arc stability according to the distance from the workpiece during MMA welding.
- Lift TIG: Allows welding of heat-sensitive materials. Ensures a clean TIG arc ignition by touch, minimizing electrode contamination. (requires torch and shielding gas)
- Broad Material Compatibility: Ideal for welding carbon steel, stainless steel and other ferrous metals.

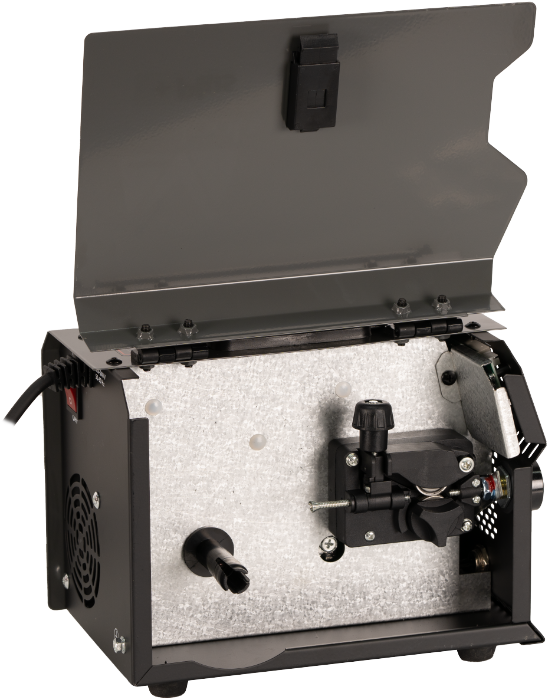

- Versatile Wire Feed (MIG/MAG): Compatible with welding wires with diameters between 0.8 and 1.0 mm.

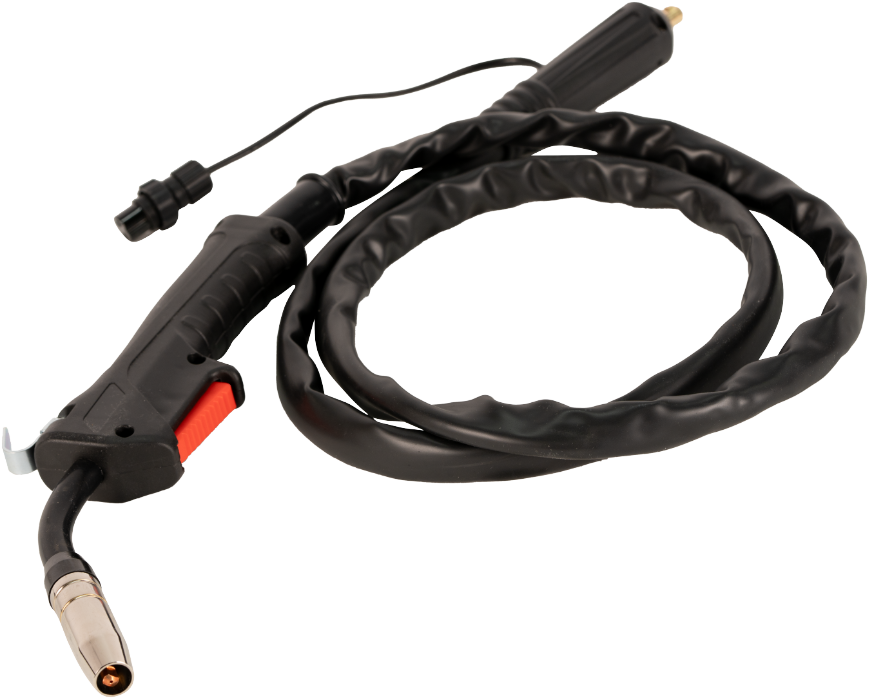

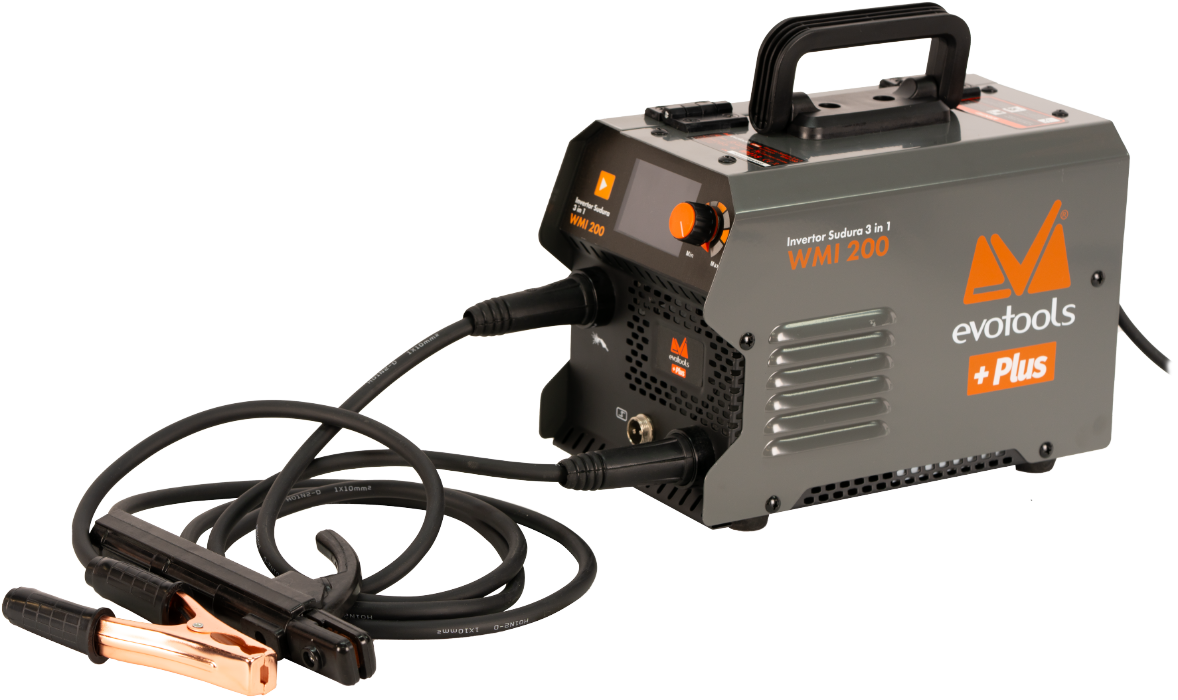

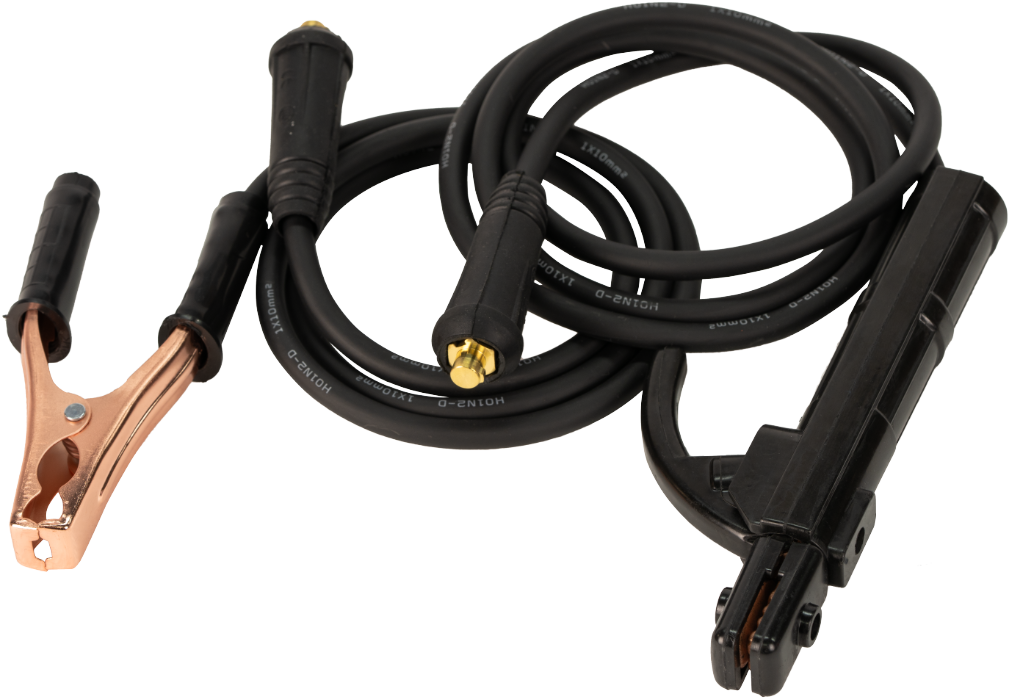

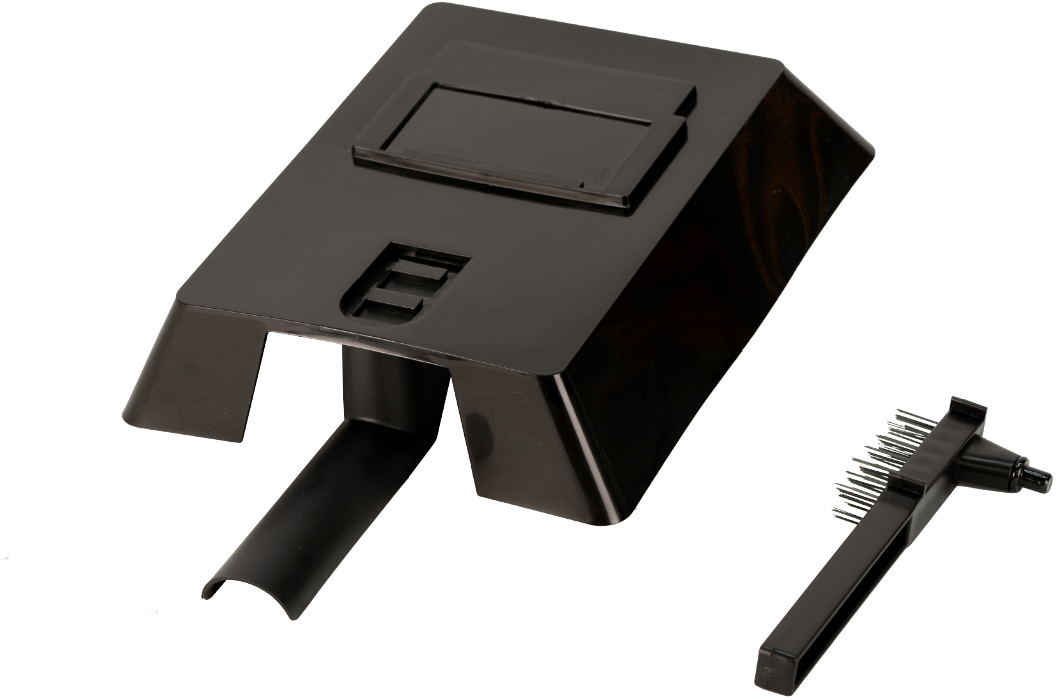

- Accessories included for MMA and MIG welding: The unit comes with 2 clamps with cables for MMA welding, a MIG torch, a mask and a brush with chipping hammer.
Note: For TIG welding a TIG torch must be purchased separately!
Technical Specifications:

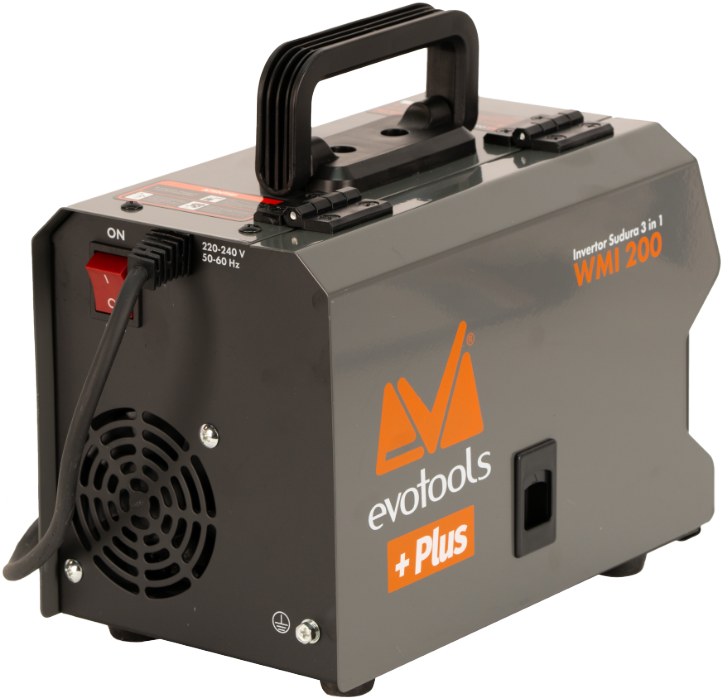

- Supply Voltage: 230V ~ 50-60Hz
- Rated Output Current (MMA/MIG/TIG): 160 A
- Duty Cycle (MMA/MIG/TIG): 30% at 160A,
- Open-Circuit Voltage: 65 V
- Maximum Absorbed Power (MIG): 4.1 kVA
- Maximum Absorbed Power (MMA): 5.1 kVA
- Maximum Absorbed Power (TIG): 3.0 kVA
- Welding Wire Diameter (MIG): 0.8 - 1.0 mm – flux-cored wire
- Electrode Diameter (MMA): 2.5 - 3.2 mm
- Protection Rating: IP21S
The 3 în 1 Welding Inverter EvoTools +Plus® WMI-200 is the ideal choice for welders looking for a versatile, high-performance and easy-to-use machine for a wide range of welding applications.
Wear welding gloves! Wear a welding mask! Wear protective footwear! Wear protective clothing! Do not use the product in precipitation conditions! Use only grounded sockets! Use only outdoors! Do not use near other bodies! The product complies with European safety standards! For your safety, read the user manual! Dispose of the product only at authorized WEEE collection and recycling centers! Keep the product out of the reach of children!
